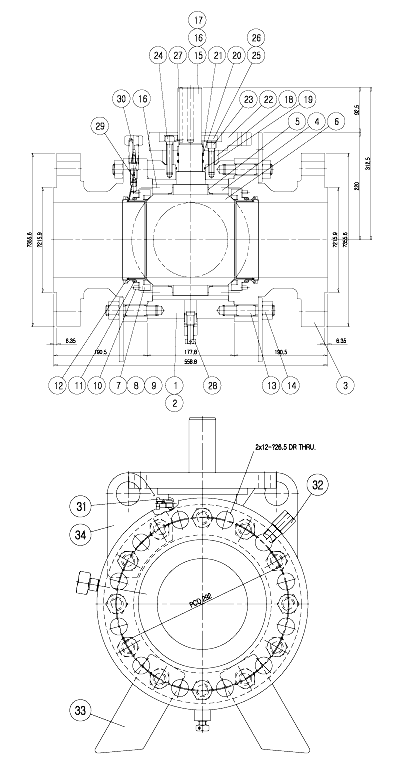

1

Body

A105

1

2

Die Formed Ring

0

2

3

Clssure

A105

2

4

Bracket

SS41

2

5

Dubush

BC+PTFE

2

6

Ball

SUS304

1

7

Seat

PTFE

2

8

Pad

VITON

2

9

Seat Ring

A105

2

10

Seat Spring

SUS304-WPB

24

11

Seat O-Ring

VITON

2

Ø5.7XØ164

12

U-Cup Packing

VITON

2

13

Stud Bolt

SCM440

24

M22 B7

14

Hex, Nut

SCM440

24

M22

15

Ball

SUS304

1

16

Pin

SK4M

4

Ø6X35L

17

Pin

SK4M

2

Ø6X32L

18

Gland Plate

A105

1

19

Gland O-Ring(Out)

VITON

1

P48

20

Gland O-Ring(In)

VITON

2

Ø2.4XØ56

21

Gland Bush

A105

1

50A Sch160

22

Adapter Plate

SS41

1

23

Hex, socket Bolt

SCM440

1

24

Hex, socket Bolt

SCM440

3

M12X65L

25

Stop Collar

S45C

1

M12X50L

26

Stop Collah Washer

NYLON

1

27

SQ, Key

S45C

1

12X9X111L

28

Drain Valve

1

29

Double Check Valve

2

30

Grease Fitting

2

31

Vent Plug

1

32

Relief Valve

1
