  • 공장 보온용 볼밸브
list
  • 제품사진
  • ㆍSize : 20A~700A
    ㆍ규격 :
    ㆍ압력. : 20㎏f/㎠
    ㆍType : welding
    ㆍMaterial : A105
  •

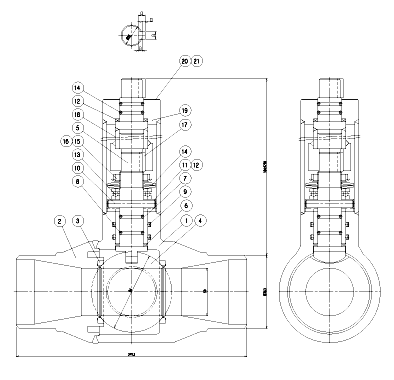

  • 제품도면
  • spec01
  • 제품사양

  • No

    Part Name

    Material Spec

    Q'ty

    Remark

    1

    Main Body

    A105

    1



    2

    Body

    A105

    1



    3

    Seat

    PTFE+C25%

    2



    4

    Ball

    STS304

    1



    5

    Ball Spindle

    STS304

    1



    6

    Back Packing

    PTFE

    2



    7

    Gland

    A105

    1



    8

    O-Ring(Inside)

    VITON

    4

    P21

    9

    O-Ring(Inside)

    VITON

    2

    P34

    10

    Stopper Pin

    SK5M

    1

    8x50L

    11

    Stop Key

    SM45C

    2

    HRC40~45

    12

    Hex, Socket Head Bolt

    PUR.

    4

    M5x15L

    13

    Thrust Bearing

    PUR.

    1

    #51105

    14

    Belleville Spring

    S70CM

    2



    15

    Lock Washer

    PUR.

    1

    AW05

    16

    Lock Nut

    PUR.

    1

    AN05

    17

    SQ, Key

    SM45C

    2

    6x6x20L

    18

    Spindle

    STS304+SPPS38

    1

    25A Sch80

    19

    Stem

    SPP+A105

    1

    50A

    20

    Indicator

    SPP

    1



    21

    Indicator Name Plate

    A6061

    1
